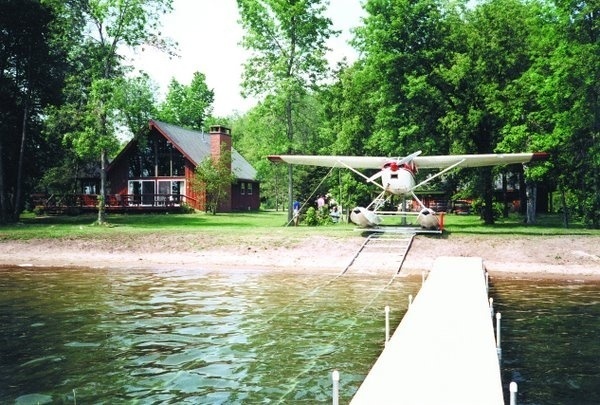

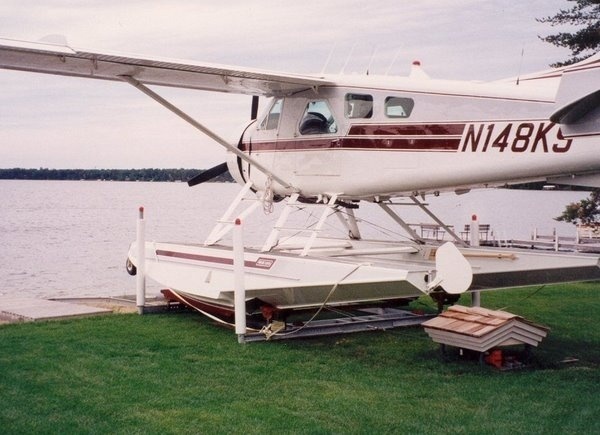

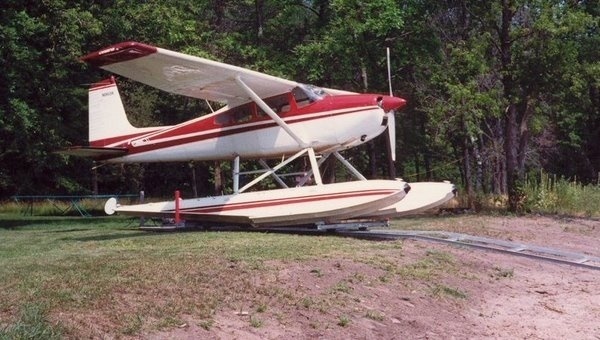

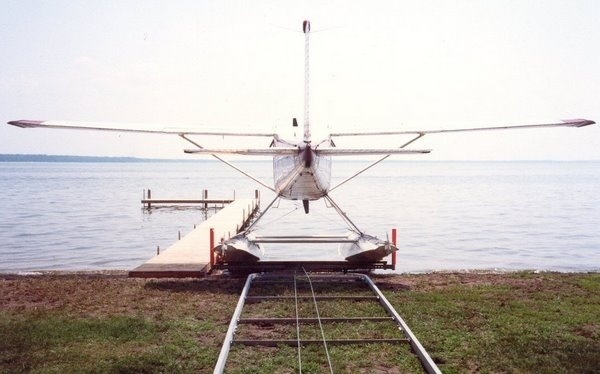

This heavy duty float plane marine railway provides smooth and easy transportation of your aircraft from the water to land. This system has been in use at Lake Louise for several years and with the sale of my airplane is no longer needed. Enough components for at least 80 feet of railway, and includes all major components required, including 2 way winch, railway, end piece, pulley, stainless cable, etc. Plenty of spares for all railway needs. Still located in Lake Louise at this time, but could be transported to Anchorage or various points in between. See marine railway system, specs and galleries
Specs:
Maximum Capacity: 5,000 lbs. (2,272 kg)
Section Length: 10 ft. (3.04 m)
Section Width: 5 ft (1.52 m)
Section Weight: 125 lbs. (56.8 kg)
Carriage Width: Adjustable from 80″ (203 cm) to 120″ (305 cm)
Carriage Length: Adjustable 8 ft (2.5 m), 9 ft (2.75 m), or 10 ft (3.04 m)
Carriage Weight: 400 lbs. (182 kg)
Wheels: Double Flanged Cast Aluminum
Cable: 1/4″ (6.35 mm) Galvanized (stainless steel is available)
Winch Motor: 1.5 HP (1.1 kW), 24 volt 2 way winch (DC)
|
