Condition
New
Estate item. This lathe is brand new. Least expensive price I could find for a new Powermatic 3520C was $5500.00 and does not include shipping. Husband passed away before he could set it all up. Serious inquiries only please. I have an Oregon number but I live in Soldotna, Alaska.

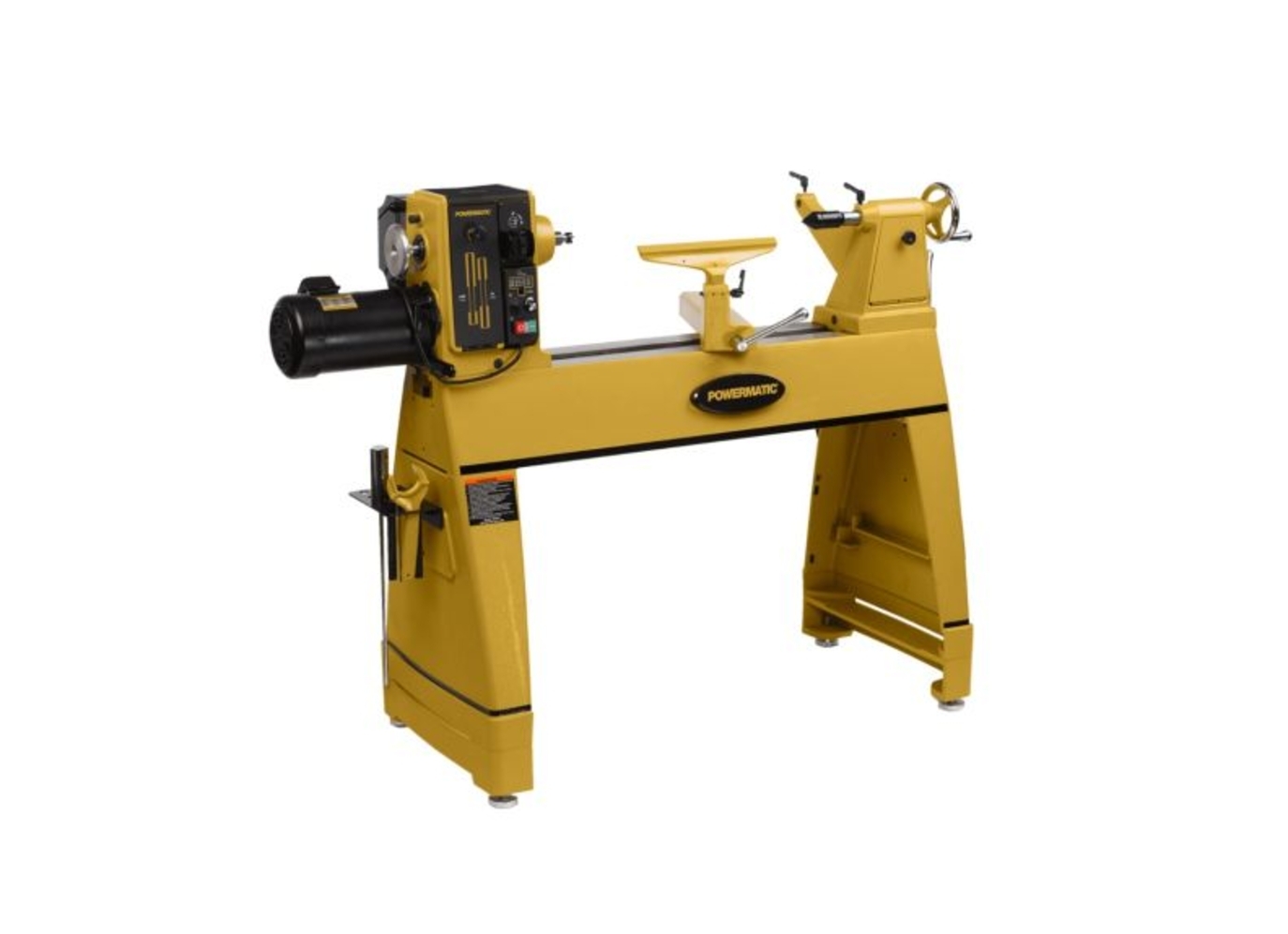

The Powermatic 3520C wood lathe builds upon the venerable 3520B with modern styling and exciting new features. The 3520C features a moveable control box, redesigned spindle lock, digital spindle indexing readout, adjustable riser blocks for 6" of height adjustment, and more. Cast iron construction, attention to detail, and user friendly design make Powermatic lathes an excellent value for turners of all skill levels. Backed by Powermatic's 5 year warranty and service centers throughout the USA.
Features
Moveable control box
Redesigned spindle lock
Includes 4" riser blocks for height adjustment
Digital spindle indexing readout
ACME thread tailstock quill
Increased weight for stability
Capacities
Swing over bed: 20"
Swing over tool rest: 15-3/4"
Distance between centers: 35-1/2" (working distance with centers installed)
Maximum outboard capacity: 38" (with optional bed extension in low position)
Headstock and Tailstock
Spindle thread: 1-1/4" x 8 TPI
Spindle taper: No. 2MT
Spindle through bore diameter: 5/8"
Spindle speeds: low range 15-1200 RPM; high range 40-3200 RPM
Tailstock quill taper: No. 2MT
Tailstock through bore diameter: 3/8"
Tailstock quill travel: 4-1/2"
Tool Rest
Tool rest width: 14"
Tool rest post diameter: 1"
Tool rest locking mechanism: Bushing
Motor and Electrics
Motor power: 2HP
Power requirements: 220V, 1 phase
Recommended circuit size: 20 Amps
Drive system: Poly V belt, 2-step pulley
Measurements
Assembled size (LxWxH): 64" x 24" x 46" (without 4" riser blocks)
Bed length: 51"
Spindle height from floor: 40-5/8" (without 4" riser blocks)
Bed gap: 2-1/2"
Net weight: 726 lb.
Shipping weight: 770 lb.
|
